| Place of Origin : | Zhengzhou China |
| Trademark : | BOSDI |
| Minimum Order : | 5 Pcs |
| Delivery Time : | 3-5 days |
| Payment Terms : | T/T, L/C, Western Union, MoneyGram, Paypal |
| Supply Ability : | 100,000 Pcs per year |
| Price : | Negotiable |
| Package : | Carton, Plastic drum/bag, Metal bucket |
Product advantages
*High-quality diamond raw materials
Use high-quality diamond raw materials，high hardness and long grinding life.Diamond has good thermal conductivity ,which is conducive to the evacuation of heat, avoids work burns.
*Good self-sharpening
Good self-sharpening , the abrasive falls off evenly during the grinding process , and the sharp cutting edge is re-exposed . The sharpened diamond wheel can maintain the micro-edge between the abrasive grains
*Good grinding effect
The grinding wheel has a certain elasticity, which is beneficial to improve the surface roughness of the workpiece. It is mainly used for fine grinding, semi-finishing grinding, knife grinding, polishing and other processes.

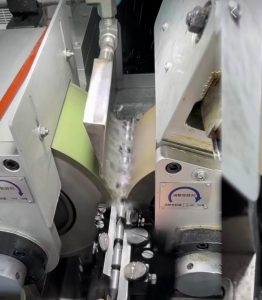

Used in the processing of material, such as hard alloy, precision ceramics, magnetic materials,PCD/PCBN composite plate. It' s suitable for 1040、1050、10100 series models of centerless grinding machine; with the characteristic of effective and high-volume cylindrical grinding, high precision cylindricity of workpiece, consistent size, smooth finish of precision grinding workpiece.

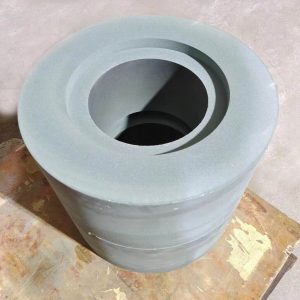

BSD-825 Series
Centerless Guide Grinding Wheel
Material: WA C A CrA GC PA
| Item |
Type |
Size（mm） |
Weight (kg) |
Girt |
|
BSD-825050 |
M1010 |
125×50×50 |
3 |
60-1000# |
|
BSD-825240 |
M1020 |
200×100×75 |
6 |
|
|
BSD-825230 |
M1040 |
250×125×75 |
13 |
|
|
BSD-825350 |
M1050 |
300×150×127 |
18 |
|
|
BSD-825350 |
M1080 |
300×150×127 |
18 |
|
|
BSD-825670 |
M1083 |
350×200×127 |
24 |
|
|
BSD-825380 |
M1206 |
205×150×90 |
6 |
12
Focus on high-tech production for 12 years50
Exported to 50 countries and regions6000
Covers an area of 60,000 square metersTechnology
The production technology and process of synthetic diamond are becoming more and more mature. China's output of synthetic diamond accounts for more than 90% of the world's total output of synthetic diamond, and has become the largest producer of synthetic diamond in the world. As the quality of domestic products is difficult to meet the industry standard of diamond cutting line and the output of refined nickel is insufficient, most manufacturers rely on foreign imports. The following is an analysis of the current situation of the diamond industry.
