| Place of Origin | Zhengzhou China |
| Trademark | BOSDI |
| Minimum Order | 50 Pcs |
| Delivery Time | 15 days |
| Payment Terms | T/T, L/C, Western Union, MoneyGram, Paypal |
| Supply Ability | 1,000,000 Pcs/ year |
| Price | Negotiable |
| Package | Carton, wooden box, straw rope, pallet |
Ceramic grinding wheels are mainly used in tool repair, CNC, bearing, machine tool and other processing industries, and can also be used for ordinary grinding. Because of their low price and convenient operation, they are widely used in the metal processing industry. BOSDI ceramic grinding wheels are produced in a full range from coarse to fine, with materials such as GC/C/ZA/A/PA/WA/microcrystalline fused alumina and mixed abrasives.
Ceramic grinding wheels are characterized by stable chemical composition, high strength, good water and heat resistance, sharp grinding, large air holes, no heating, no blocking, and small thermal expansion, but they are relatively brittle, so most ceramic grinding wheels have low speed.
Diameter: BOSDI can be used as grinding wheel with diameter from 10mm to 1500mm,
Grain size: P36/40/60/80/100/120/150/200/240/320/400/500/600/800/1000/1500/2000/3000
Shape: parallel, cup, saucer, column, bowl, peach, trapezoid, single-sided concave, double-sided concave, cuboid, cone and other special-shaped grinding wheels
Color: grey, red, blue, pink, black, yellow, white, khaki, etc
Material: brown corundum; Zirconium corundum; Silicon carbide; Green silicon carbide, semi brittle corundum; Chromium corundum; Single crystal corundum; Ceramic corundum; White corundum, etc

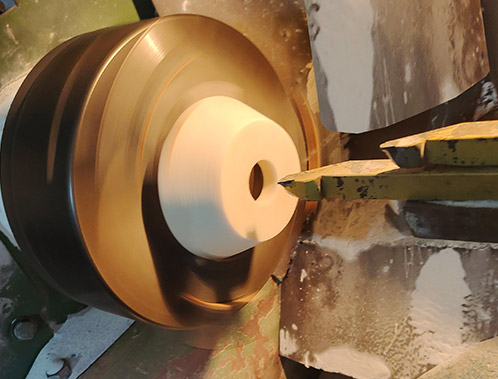

Ceramic grinding wheels are usually used to grind rolls, grinders, inner and outer edge grinders, repair cutters, hard alloys, etc. Because of their low price, simple operation and good use effect, ceramic grinding wheels are also widely used in automobile, aviation, ship, home appliances, hardware, architecture, furniture, stone and other industries.
If you work for a long time, a certain amount of heat will be generated. Therefore, we suggest that if you grind for a long time, add water to cool it to extend the service life of the grinding wheel.
| Diameter | Thickness | Grit | Hardness | Material |
| mm | mm | No. | No. | name |
| 10~20 | 2~5 | 80~400 | A B C D E F G H J K L M N P Q R S T Y | GC C ZA A PA WA MA and Mixture |
| 25~100 | 5~50 | 30~500 | ||
| 150~400 | 15~100 | 36~500 | ||
| 450~800 | 50~300 | 36~320 | ||
| 900~1500 | 50~1000 | 36~320 |
The shapes are flat, dish, bowl, cup, single concave, double concave, single convex, double convex, zigzag, etc
Ceramic wheel has fine grain, medium grain,coarse grain and mixed grain size to choose from,according to customer needs,all kinds of special-shaped products processing customized.
The hardness of grinding wheel is divided into 14 grades
Hardness classification and code of grinding wheel:
| Code | Hardness | Classification |
| A B C D E F | Supper soft | 1 |
| G | Soft | 2 |
| H | Soft | 3 |
| J | Soft | 4 |
| K | Middle soft | 5 |
| L | Middle soft | 6 |
| M | Middle | 7 |
| N | Middle | 8 |
| P | Middle hard | 9 |
| Q | Middle hard | 10 |
| R | Middle hard | 11 |
| S | Hard | 12 |
| T | Hard | 13 |
| Y | Supper hard | 14 |

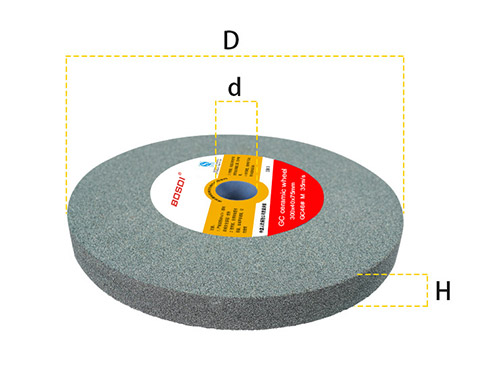

Commonly used flat grinding wheel size:
| Out diameter | Thickness | Bore diameter |
| Mm | Mm | Mm |
| 150 | 20 | 30 |
| 150 | 25 | 32 |
| 200 | 20 | 32 |
| 200 | 25 | 32 |
| 250 | 25 | 32 |
| 250 | 32 | 32 |
| 300 | 32 | 32 |
| 350 | 40 | 127 |
| 400 | 50 | 203 |
The above specifications are commonly used. Please consult us for other sizes. Thank you for your support and cooperation. Welcome to cooperate.
