| Title | Natural diamond cutter |
| Alias | Diamond dresser |
| Model | DE1302/DE090 series |
| Material | Diamond |
| Usage | External trimming |
| Effect | Fine grinding |
| Price | Negotiable |
| Shank | Customized |
1.Made of natural diamond inlay. Using high-quality natural diamond as the raw material, using a single natural grinding wheel mainly used for various grinding machines for dressing, using diamond inlay welding.
2.Unique angle design. By utilizing the natural sharp corners of natural diamonds, the skin hardness and wear resistance of natural diamonds are fully utilized, and can also be manually ground to 60 degrees, 90 degrees, 120 degrees, or various angles.
3.Welding is firm and the workmanship is excellent,Strong stability,Suitable for precision dressing of grinding wheels with large diameters and particle sizes. It can also be used for dressing ordinary grinding wheels.
4.Durable, sharp, and delicate workmanship. The selected natural diamond has fine material selection, long-lasting wear resistance, and low diamond loss rate. It can be repeatedly used to repair sharp corners after diamond wear.
• Used for dressing and shaping

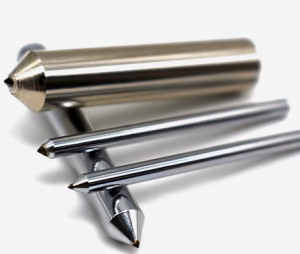

• The Single Point Diamond Dresser is more versatile dressing tool, which is used for turning and dressing of grinding wheel. They are made of carefully selected raw diamonds mounted in holders by means of special bonds. The dressing tool takes care of two main functions, it removes abrasive grains which have become completely worn out, and it recreates the correct geometric shape of the grinding wheel.
• Diamonds for single point dressers are selected in accordance with quality and size. The question of using a superior, average or commercial quality depends on the grinding finish required and the machines and working parameters.
• It is suitable for trimming large grinding wheels such as external grinding, plane grinding, and roll grinding. It can meet the needs of grinding wheel trimming in most large machining enterprises.
Make according to customer samples, drawings and instructions to improve cooperation efficiency and accuracy. For the specific use requirements of customers, we must communicate clearly with our company's technical personnel. We recommend suitable products according to your specific circumstances to ensure product performance while reducing costs.
Raw material characteristics: imported from Belgium and South Africa, it always guarantees that the diamonds are of true quality, high-quality natural diamonds have no cracks, no bubbles, and sharp corners.
Product performance: The trimming grinding wheel has high flatness, stability and durability, sharp diamond sharp corners, complete structure, and many complete sharp corners inside, so when the sharp corners are blunt and the requirements for use are not met, it can be returned to our factory for renovation, and the natural sharp corners in the handle body can be adjusted up.
