| Place of Origin | Zhengzhou China |
| Trademark | BOSDI |
| Minimum Order | 50 Pcs |
| Delivery Time | 3-5 days |
| Payment Terms | T/T, L/C, Western Union, MoneyGram, Paypal |
| Supply Ability | 1,000,000 Pcs/ year |
| Price | Negotiable |
| Package | Carton, Plastic drum/bag, box |
1. Sharpness grinding
Imported emery cloth, sharp cutting;
2. High quality materials
Epoxy resin is used, which is firmly bonded, safe and wear-resistant;
3. Superior performance
It has strong elasticity, does not burn the workpiece, and has stable physical and chemical properties and high safety.
It has the advantages of sharp cutting, high processing efficiency, non burn workpiece, stable physical and chemical properties, high safety, continuous operation, etc. However, in addition to these advantages, its use has the following advantages:
1) The handle wheel can save a lot of labor and time in the process of use.
2) The leaf wheel with handle is durable and sharp.
3) The use of the handle wheel can effectively improve the production efficiency.
4) The blade wheel with handle has good grinding effect and is very convenient to use.
5) The pulleys with handles have high tensile strength and high grinding pressure.
Although its use has many advantages, there are several points to be noted when using it:
1) Remember not to use excessive force, and use even force to avoid the breakage of the thousand leaf wheel, which may cause unsafe risks.
2) The impeller produced by a regular manufacturer shall be selected, and the higher speed it can bear shall be consistent with the speed of the machine.
3) Wear protective goggles, wear appropriate work clothes, and do not cut or polish towards others or yourself.
4) Before use, be sure to check whether the protective cover is stable and whether the installation of the wheel is stable.
[Applicable tools]
Angle grinder, grinder, polishing machine
Product Advantages
Tools can be easily replaced by hand without additional auxiliary tools. The double clamping groove flanging pouring process is used for higher strength and larger size to meet the needs of different customers.
●Taking aluminium or fiberglass as backing, diamond abrasive cloth bond with it firmly.
●Sharp grinding and good wear resistance.
●Making the disc stiffer.
●Most effective when used with pneumatic tools.
1. Sharpness grinding: pure cotton abrasive cloth with high-quality emery is used for sharp cutting;
2. High quality materials: high-strength plastic backing and high-quality epoxy resin are used, which are firmly bonded, safe and wear-resistant;
3. Superior performance: comfortable hand feel, non burn workpiece grinding, stable physical and chemical performance, high safety.
*The impeller with handle is mainly used for surface polishing of wood, metal, nonmetal and stone
*Fine grinding of inner diameter and outer wall of workpiece
*It is used for grinding the surface and curved surface of various complex convex and concave workpieces
*Irregular surface polishing of welding scar, welding spot, weld, box, etc
*Blade, metal louver, inner and outer edge grinding
*Derusting, deburring, degreasing, etc
1. The impeller with handle is mainly used for the surface polishing of wood, metal and non-metal
2. Fine grinding of the inner diameter and outer wall of the workpiece is used for surface grinding, especially for irregular surface polishing.
3. Used for polishing workpieces, welds, welding scars, welding spots, boxes, etc
4. It is suitable for finishing various complex curved surfaces, especially for grinding and polishing concave and convex surfaces.
5. High processing efficiency, high safety factor, no workpiece burn, low noise and easy operation.
Diamond quick change discs are widely used in processing stone, glass, ceramics, mono-crystalline silicon, cemented carbide, spraying, etc.
The quick change discs are usually used in corner dubbing, breaking edges, removing partings lines.
*. It is used for surface polishing of stone, glass, monocrystalline silicon, ceramics, jade, hard alloy, paint spraying layer, etc
*. Fine grinding of the inner diameter and outer wall of the workpiece is used for surface polishing, especially for irregular surface polishing.
*. It is used for polishing ceramic workpieces, non-metallic boxes, precision ceramics, silicon chips, glass instruments, precious jades, etc
*. It is suitable for finishing various complex curved surfaces, especially for grinding and polishing concave and convex surfaces.
*. High processing efficiency, high safety factor, no workpiece burn, low noise and easy operation.
| Model | Dia | H (height of wheel) | Shank | ||||||
| No. | D | mm | mm | ||||||
| mm | 20 | 25 | 30 | 35 | 40 | 45 | 50 | 6 | |
| BSD-25007 | 20 | ● | ● | 6 | |||||
| BSD-25008 | 25 | ● | ● | 6 | |||||
| BSD-25009 | 30 | ● | ● | ● | 6 | ||||
| BSD-25010 | 35 | ● | ● | ● | ● | 6 | |||
| BSD-25011 | 40 | ● | ● | ● | ● | ● | 6 | ||
| BSD-25012 | 45 | ● | ● | ● | ● | ● | ● | 6 | |
| BSD-25013 | 50 | ● | ● | ● | ● | ● | ● | ● | 6 |
| BSD-25014 | 60 | ● | ● | ● | ● | ● | ● | ● | 6 |
| BSD-25015 | 75 | ● | ● | ● | ● | ● | ● | ● | 6 |
| BSD-25016 | 80 | ● | ● | ● | ● | ● | ● | ● | 6 |

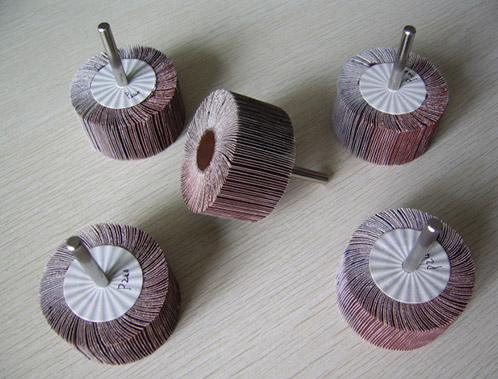

[Applicable objects of brown Aluminium flap wheel wigh shank]
Suitable for stainless steel, standard steel, alloy steel, aluminum, nonferrous metal materials and alloys, plastic materials, glass fiber, rubber, marble, stone, concrete, wood, leather or leather, etc.
Details of Diamond flap wheel
Raw material: diamond
Back support: plastic backer, glass fiber backer, Metal nut backer and stainless steel shank
Effect: fine polishing
Particle size: 60 #/120 #//200 #/400#
Shank diameter range: 3mm, 6mm, 3.175mm, 6.35mm
Customizable range: outer diameter, thickness, handle diameter, material (such as diamond plus silicon carbide), particle size, etc.
Details of flap wheel with movable handle
12
Focus on high-tech production for 12 years50
Exported to 50 countries and regions6000
Covers an area of 60,000 square metersTechnology
The production technology and process of synthetic diamond are becoming more and more mature. China's output of synthetic diamond accounts for more than 90% of the world's total output of synthetic diamond, and has become the largest producer of synthetic diamond in the world. As the quality of domestic products is difficult to meet the industry standard of diamond cutting line and the output of refined nickel is insufficient, most manufacturers rely on foreign imports. The following is an analysis of the current situation of the diamond industry.
>> Learn moreBrand Development
The production technology and process of synthetic diamond are becoming more and more mature. China's output of synthetic diamond accounts for more than 90% of the world's total output of synthetic diamond, and has become the largest producer of synthetic diamond in the world. As the quality of domestic products is difficult to meet the industry standard of diamond cutting line and the output of refined nickel is insufficient, most manufacturers rely on foreign imports. The following is an analysis of the current situation of the diamond industry.
